Initial setup via Web

Web/IOS · Updated July 4, 2026

First-time setup of a MissingBolt charger through Web access. Takes about 10 minutes. The charger must already be installed and powered on — see the Quick start guide first.

Before you start#

  • The charger is powered and its status ring is green.

  • You know your home Wi-Fi name and password (2.4 GHz network).

Install the Web APP#

  1. On the target phone open the app in Safari
Open the App

For IOS please do not use chrome to install the progressive web app. Safari only

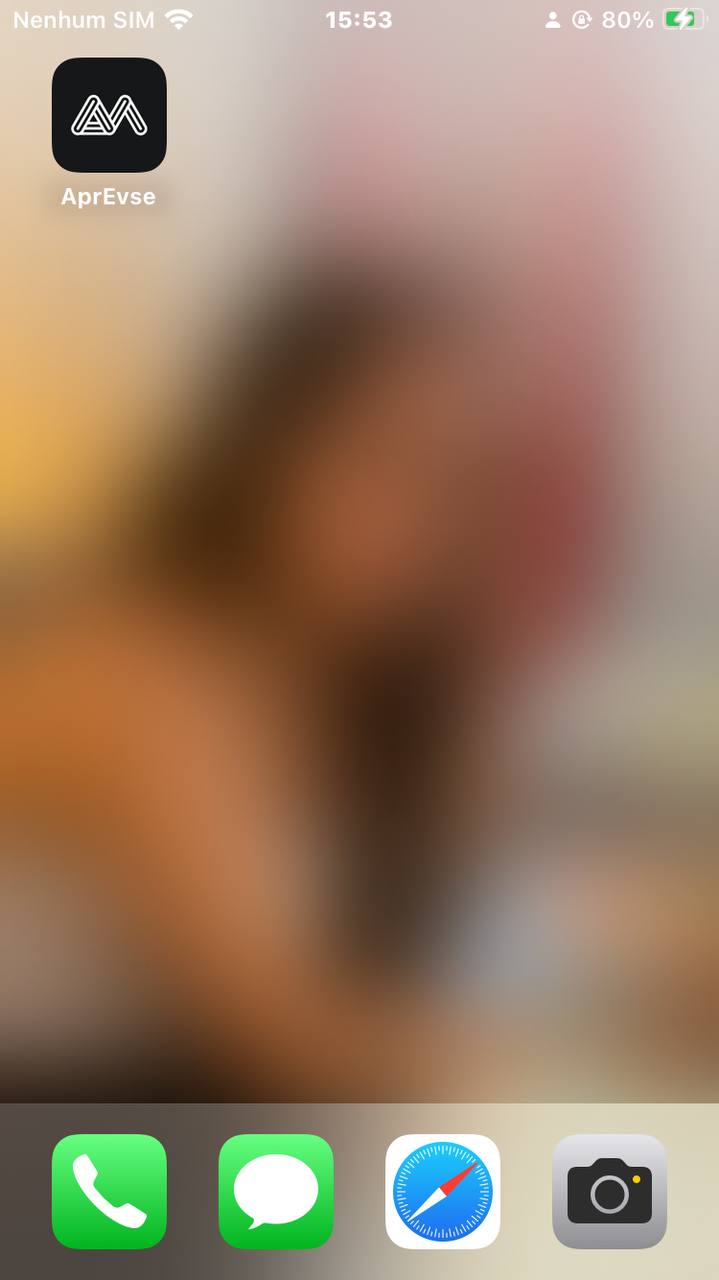

  1. Tap the Share button (the square with an arrow pointing up) at the bottom or top of the screen and select “Add to Home Screen”
  1. Open the app and enter an email to register an account and tap Send Code. Enter the 6-digit code from your inbox and tap Verify.

Direct access to the EVSE#

The EVSE broadcasts its own SSID when plugged in or restarted. This SSID turns off automatically after 5 minutes once it successfully connects to a Wi-Fi network. The SSID comes back on whenever the Wi-Fi connection is interrupted.

  1. Connect to the Wi-Fi network APREVSE-XXXX with the password 12345678

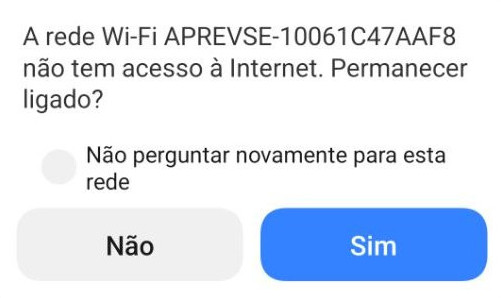

Important: choose to stay connected to the charging unit’s network

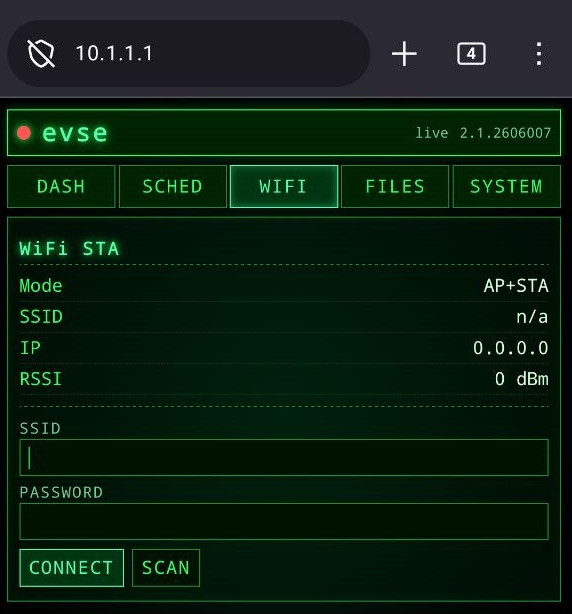

  1. From a browser, go to http://10.1.1.1 to reach the charging unit’s internal page. Navigate to the WiFi section and set the WiFi credentials with the help of the SCAN button

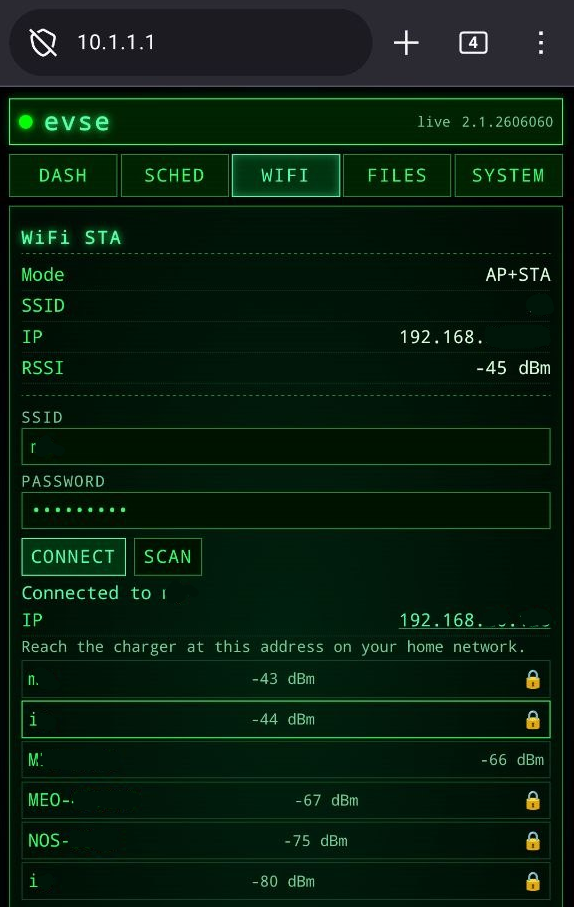

Confirm that the EVSE connected to the network and note the assigned IP. You can stay on the page to click the link it provides:

  1. On the PC or phone, switch back to your home WiFi network and click the IP to reopen the page, this time with the EVSE already connected to the internet. Navigate again to the WiFi section and now a QR code appears to link the device to your account.

If you are on the phone you can tap the COPY ID to copy the device id and paste into the app at Profile -> Edit Devices -> Add Charger -> Paste

If you are on a PC/Laptop you can scan the QR code with the phone that has the App installed

Charger overview#

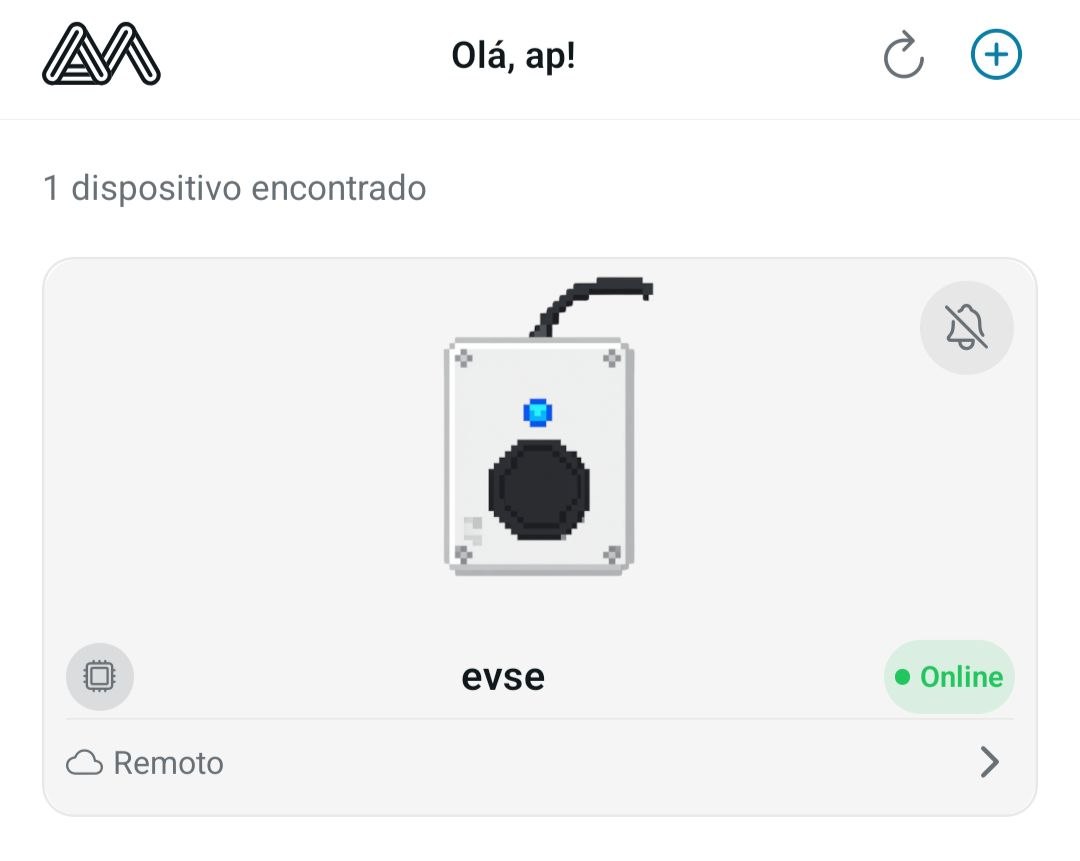

Back on the device list, your charger appears as Online.

The device list with the new charger online

  • Tap the device image to open the control panel

  • Long-press the name to open a menu with access options and photo customization

  • Tap to manage alert options

  • Tap to manage firmware updates

  • Tap to refresh the page

  • Tap to access Add charger
